1. The built-in load capacitor reduces the cost of parts and installation
Compared to quartz crystals, the startup time is faster
3. Excellent temperature stability (± 0.3%)
4. High density installation
5. Simplify the circuit
6. Low cost

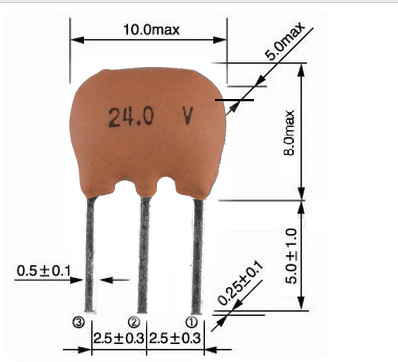

7. Pin 3-pin package, frequency 6MHz~60MHz
8. Can replace Murata Murata CST series ceramic resonators
| model | Frequency range (MHz) | Frequency accuracy (%) | Temperature stability (-20~80 ℃) (%) | Working temperature (℃) | Aging rate (%) |
| ZTT□MT | 6-13.00MHz | ± 0.5 | ± 0.3 | -25~85 ℃ | ± 0.3 |
| ZTT□MT |
12-60.00MHz |
± 0.5 |
± 0.3 |
-25~85 ℃ |
± 0.3 |
