1. Ultra small size, SMT metal encapsulated active crystal oscillator, size 3.2 × two point five × 1.0 mm.
2. High precision and high frequency stability.
3. Supports three state functionality.
4. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
5. The high-frequency output range is 32.768kHz~220MHz.
6. Low operating voltage of 1.8V~3.3V, low phase noise and jitter.
7. Green and environmentally friendly products, certified by RoHS and Pb Free.
8. The SMD 3225 active crystal oscillator is mainly used in industries such as smart wearable products, the Internet of Things, mobile communication, wireless communication, DVC, wireless communication, mobile phones, handheld devices, automotive aftermarket devices, Bluetooth, etc.
| model | NSP32 3225 active crystal oscillator | ||||
| Material code | NSP32 | ||||
| type of output | CMOS | ||||
| Output load | 15pF, or customized | ||||
| Oscillation mode | fundamental frequency | ||||
| working voltage | 1.8V~3.3V | ||||
| frequency range | 32.768kHz~220MHz | ||||
| Adjusting frequency difference | ± 25ppm, ± 50ppm | ||||
| working temperature | -20~70 ℃ (-10~60 ℃, -40~85 ℃), or customized | ||||
| Output voltage VolMax/Voh min | 0.1VDD/0.9VDD | ||||
| Duty cycle | 45~55% | ||||
| Support current | 15mA max | ||||
| Rise/Fall Time | 3 nsMax | ||||
| Start time | 3 msMax | ||||
| Storage temperature | -55-125 ℃, or customized | ||||
| Phase jitter (12KHz~20MHz) | 1 psMax | ||||
| Aging rate (25 ℃) | ± 3ppm/yearMax | ||||

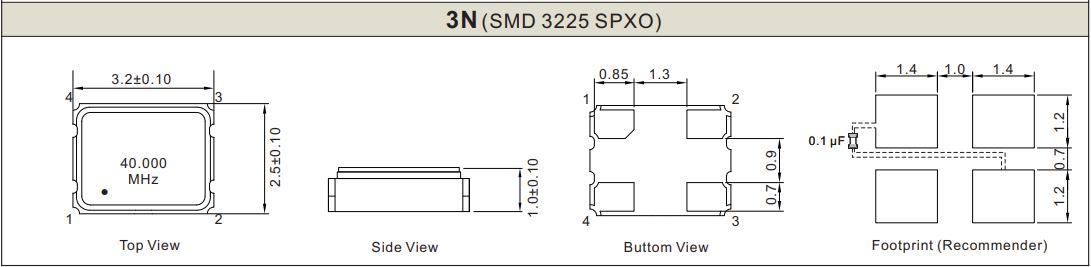

| Product size (mm) | three point two × two point five × one | ||||
| Packaging quantity | 3000pcs/ volume | ||||
