1. Ultra small size, SMT metal encapsulated active crystal oscillator, size: 2.5 × two × 0.8mm.
2. High precision and high frequency stability.
3. Supports three state functionality.
4. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
5. High frequency output range 32.768kHz~220MHz
6. Low operating voltage of 1.8V~3.3V, low phase noise and jitter.
7. Green and environmentally friendly products, certified by RoHS and Pb Free.
8. The SMD 2520 active crystal oscillator is mainly used in mobile phones, wearable smart devices, network communication, WiLAN, WiMAX, DVC, digital TVs, gaming devices, Blu ray players, audio devices, camera modules, automotive electronics, computers and computer peripherals, USB devices, consumer electronics and other electronic products and applications.
| model | NSP22 2520 active crystal oscillator | ||||
| Material code | NSP22 | ||||
| type of output | CMOS | ||||
| Output load | 15pF, or customized | ||||
| Oscillation mode | fundamental frequency | ||||
| working voltage | 3.3V (1.8V, 2.5V) | ||||
| frequency range | 32.768kHz~220MHz | ||||
| Adjusting frequency difference | ± 25ppm, ± 50ppm | ||||
| working temperature | -20~70 ℃ (-10~60 ℃, -40~85 ℃), or customized | ||||
| Output voltage Vol max/Voh min | 0.1VDD/0.9VDD | ||||
| Duty cycle | 45~55% | ||||
| Support current | 10mA max | ||||
| Rise/Fall Time | 5 ns max | ||||
| Start time | 5 ms max | ||||
| Storage temperature | -55-125 ℃, or customized | ||||
| Phase jitter (12KHz~20MHz) | 1 ps max | ||||
| Aging rate (25 ℃) | ± 3ppm/year max | ||||

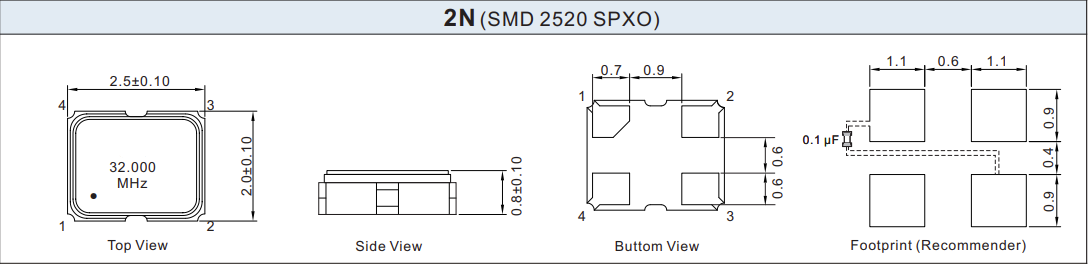

| Product size (mm) | two point five × two × zero point eight | ||||
| Packaging quantity | 3000pcs/ volume | ||||
| 1. Ultra small size, SMT metal encapsulated active crystal oscillator, size: 2.5 × two × 0.8mm. | |||||||
| 2. High precision and high frequency stability. | |||||||
| 3. Supports three state functionality. | |||||||
| 4. Reel ribbon packaging, can be used for automatic installation and reflow soldering. | |||||||
| 5. High frequency output range 32.768kHz~220MHz | |||||||
| 6. Low operating voltage of 1.8V~3.3V, low phase noise and jitter. | |||||||
| 7. Green and environmentally friendly products, certified by RoHS and Pb Free. | |||||||
|
8NSP222520 active crystal oscillators are mainly used in mobile phones, wearable smart devices, network communication, WiLAN, WiMAX, DVC, digital TVs, gaming devices, Blu ray players, audio devices, camera modules, automotive electronics, computers and computer peripherals, USB devices, consumer electronics and other electronic products and applications.
|
